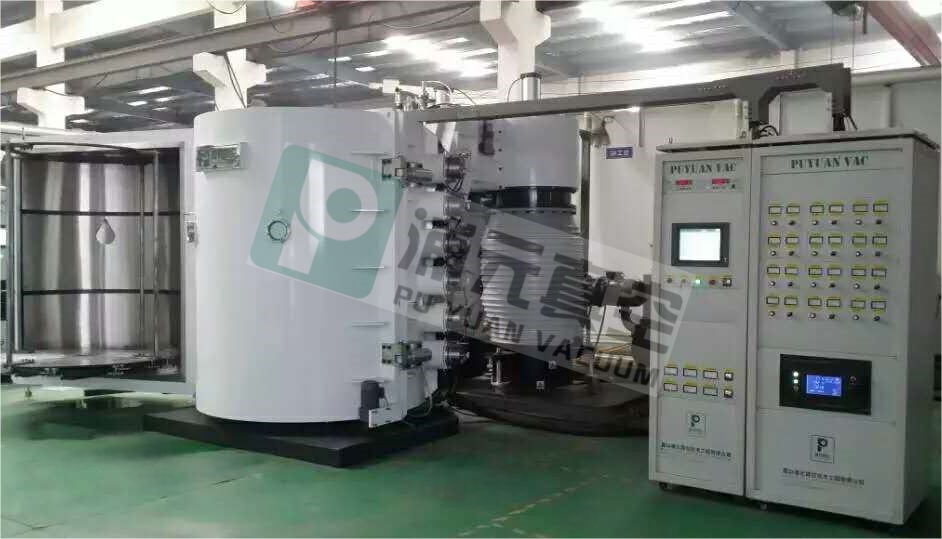

WJZ series medium independent film resistor evaporation vacuum coating machine

Date:2016-01-17 22:42:08 Hits:2415
WJZ series medium independent film resistor evaporation vacuum coating machine

Operational principle

WJZ series medium the principle of independent film resistor evaporation vacuum coating machine is in the heart of the vacuum chamber metal materials (aluminum, nickel, tin, etc.) using resistance evaporation technology will be vaporized material, after vaporization of molecular produce runaway metal deposition on the surface of the substrate is formed on aluminum, tin and other pure metal thin film layer, the introduction of the film from the special base material surface can be gently peel, formed without the thickness of the dielectric independence for 2-3 mu m, has certain elasticity, to isolate the gas and light thin film.

Applications

The electronic components industry flatness of conductive film tape and furniture decoration industry decoration film on the surface of the material.

Features

technical parameter

 Model

  WJZ-600

  WJZ-800

  WJZ-1000

  WJZ-1200

  WJZ-1400

  WJZ-1600

  WJZ-1800

 vacuum chamber dimensions

φ600X800MM

φ800X1000MM

φ1000X1200MM

φ1200X1400MM

φ1400X1600MM

φ1600X1800MM

φ1800X2000MM

 vacuum system

KT300
Diffusion pump unit

KT400
Diffusion pump unit

KT500
Diffusion pump unit

 KT630
Diffusion
pump unit

A pair of
KT630
Diffusion pump unit

A pair of
KT630
Diffusion pump unit

A pair of
KT800
Diffusion pump unit

Coating system

Resistance evaporation source + magnetic control rotating cylindrical target (optional)

Coating auxiliary system

The low temperature ion plating power supply

Inflation system

Mass flowmeter

Mass flowmeter

Mass flowmeter

Mass flowmeter

Mass flowmeter

Mass flowmeter

Mass flowmeter

Control mode

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Pumping rate

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

  Ultimate vacuum

3.0X10-4Pa

3.0X10-4Pa

3.0X10-4Pa

3.0X10-4Pa

3.0X10-4Pa

3.0X10-4Pa

3.0X10-4Pa

  Remarks

Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design
