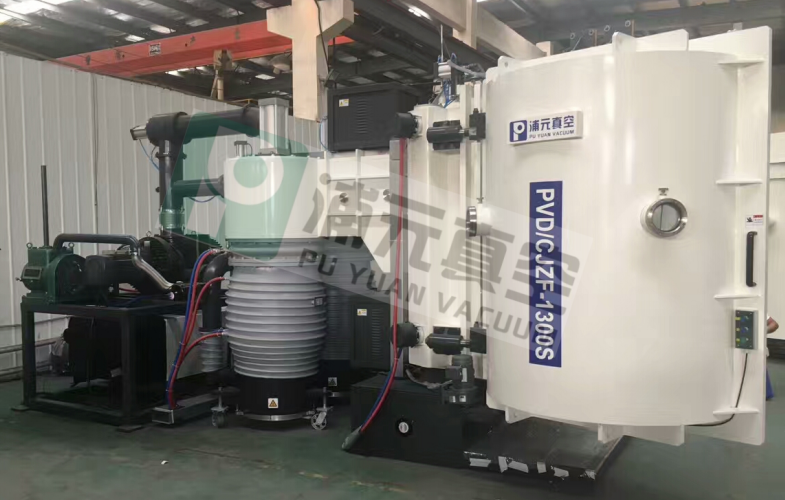

ZF Series Resistive Evaporation Vacuum Coating Machine
Date:2016-01-16 13:24:03 Hits:2185
When the evaporation materials such as aluminum wire are installed in high-resistance materials, Joule heat generated by the current under high temperature, evaporation material is instantly evaporated vapor China to migrate to the surface of the substrate and deposited to the film.
It is equipped with a low-temperature auxiliary ion beam source
1. It has a large area of plasma discharge, high ionization effects, improve bond strength, adhesion particularly strong.
2. The ion are distributed evenly, which greatly improves the stability and uniformity of the film.
3. The ionization effect is good, coated plastic, resin, acrylic and other products can be easily coated with the film.
4. Give full play to the ionization effect, plastics do not spray primer, directly on the plastic coating.
It applies to plastic. Resins, glass, ceramics and other materials produced by the cup, hood, crafts and decorations mobile phone housing. Toys and other products, coated aluminum, nickel chromium. Tin and indium metal film transparent metal film, the coating surface with a metallic or red, violet, blue, green and other bright.
ZF Series Double Door Resistive evaporation vacuum coating machine is the ideal machine in the production of large quantities of high-quality coating.
ZF series double evaporation vacuum coating machine is an ideal equipment in large quantities and high quality coating production.
Model | ZF-600 | ZF-1200 | ZF-1400 | ZF-1600 | ZF-1800 | ZF-2000 | ZF-2200 |
vacuum chamber dimensions | φ600X800MM | φ1200X1400MM | φ1400X1600MM | φ1600X1800MM | φ1800X2000MM | φ2000X2200MM | φ2200X2400MM |
vacuum system | KT500
Diffusion pump unit | KT630
Diffusion pump unit | A pair of
KT630
Diffusion pump unit | A pair of
KT630
Diffusion pump unit | A pair of
KT800
Diffusion pump unit | A pair of
KT1000
Diffusion pump unit | A pair of
KT1000
Diffusion pump unit |
Coating system | Resistance to evaporate dedicated transformer, coating auxiliary ion dedicated power supply |
Inflation system | Mass flowmeter | Mass flowmeter | Mass flowmeter | Mass flowmeter | Mass flowmeter | Mass flowmeter | Mass flowmeter |
Control mode | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic |
Pumping rate | 5X10-3Pa
<15min | 5X10-3Pa
<15min | 5X10-3Pa<15min | 5X10-3Pa
<15min | 5X10-3Pa
<15min | 5X10-3Pa
<15min | 5X10-3Pa<15min |
Ultimate vacuum | 3.0X10-4Pa | 3.0X10-4Pa | 3.0X10-4Pa | 3.0X10-4Pa | 3.0X10-4Pa | 3.0X10-4Pa | 3.0X10-4Pa |
Remarks | Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design, choice of protective film coating function |
